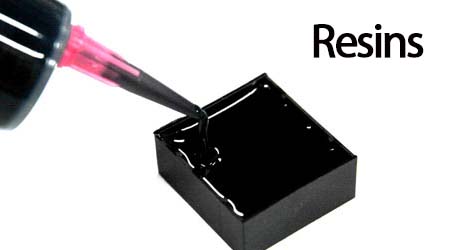

Resin systems are designed to protect and insulate electrical and electronic components from the threats of harsh and challenging environments, including; moisture, vibration, thermal or physical shock and general contamination. Resins can form a complete barrier against such environments offering superior performance to conformal coatings under extreme conditions.
- UL approved
- Potting / encapsulating
- Cable jointing
- Sealing and protection
- Bespoke and ex-stock
- Bulk variants also available
Complete Range of Resins Polyurethane, Epoxy and Silicone based
Polyurethane Resins
UR5608 โ Black
- Semi-rigid polyurethane resin with exceptional toughness
- Excellent adhesion and chemical resistance
- Flame retardant, certified to UL94V-0
- Fast cure version available, UR5618
- Ideal for cable jointing, casting, coil impregnation, PCB encapsulation, transformers, alarms and battery terminations
UR5097 โ Black
- High degree of toughness
- Flame retardant, certified to UL94V-0
- Thermally conductive
- Low water absorption and excellent electrical properties
- Especially suited to potting of electrical and electronic devices operating in harsh conditions such as marine, automotive and tropical environments
UR5562 โ Water White
- Water white transparency, ideal for potting LEDs
- Excellent resistance to yellowing when exposed to UV light
- Excellent scratch and mark resistance
- High resistance to weather, acids and alkalis, water and mould growth
UR5041 โ Black
- Ultra-high performance system based on polybutadiene technology
- High toughness and tear resistance
- Good adhesion to most substrates
- Excellent resistance to sea water
- Properties retained at temperatures down to -60ยฐC
Epoxy Resins
ER2188 โ Black
- DDM free
- Flame retardant
- General purpose potting resin
- Certified to UL94V-0
- For potting and encapsulating applications where flame retardancy is required
- Very glossy finish
ER2218 โ Flame Retardant Epoxy Resin
- Very low viscosity
- Flame retardant, meets UL94 V-0
- Excellent adhesion to a wide variety of substrates
- Excellent thermal cycling characteristics
- Designed for compatibility with reflow applications, therefore remaining stable for short term, high temperature excursions
- short term, high temperature excursions
- Good chemical and water resistance
ER2183 โ Epoxy Resin – Black
- Enhanced machine mixing and dispensing
- Low viscosity alternative to ER2074
- For use with ABS sensors, pressure barrier sensors, temperature sensors, and power supplies
ER2195 โ Black
- Tough, flame retardant potting resin
- DDM free
- Excellent thermal shock resistance
- Certified to UL94V-0
- For transformers, large castings, rotor arm sealing, pyrotechnical cables, diesel sensors and other automotive applications
Silicone Resins
SC2001 โ Two Part Silicone Compound
- Two-part potting compound suitable for use in a wide variety of applications.
- This product exhibits exceptional flexibility
- Good chemical and water resistance
SC2003 โ Thixotropic Two Part Silicone Compound
- Highly thixotropic two part potting compound
- A 1:1 ratio for ease of processing
- Flame retardant
- Excellent flexibility and chemical and water resistant
SC3001 โ Optically Clear Two Part Silicone Compound
- Optically clear, two-part potting compound
- Suitable for use in LED applications or where high level of clarity is required
- Offers exceptional protection for electronics
- Its low viscosity is easy to apply even in thin film
